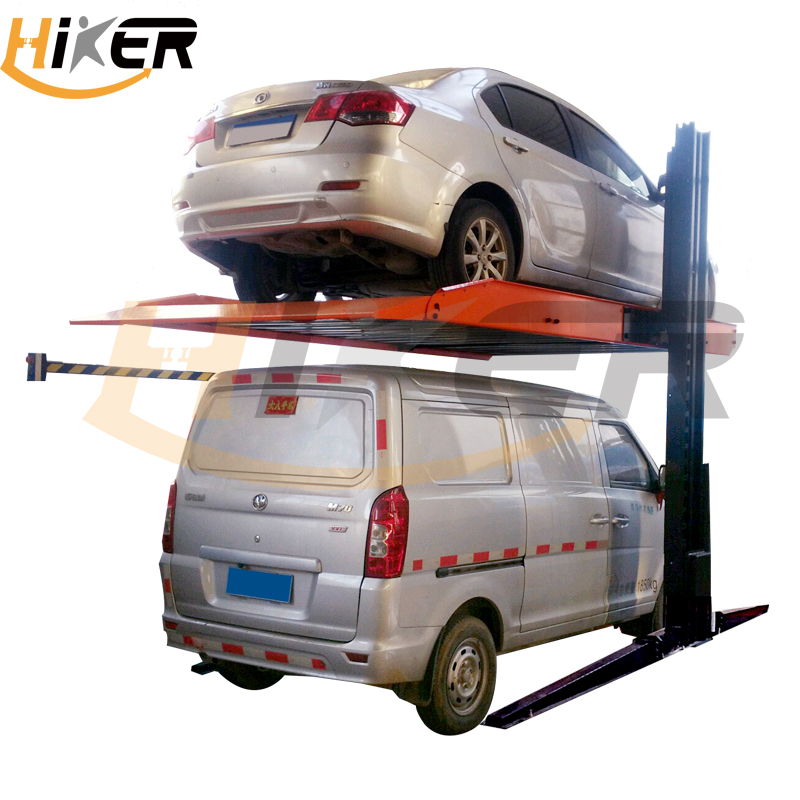

Lifting capacity: 2300kg/2100mm, suitable for sedan and compact SUV on top,full size SUV & truck on on ground, it have 2 cylinders for driving carriages, to control raising & descending with a 24V control box;
This lift is designed to allow a user to easily store one
car under another. By using the lift your are making a two car parking space
out of just one.
A solid platform allows the user to simply drive their car on to the platform, get out of the vehicle, free of any obstructions and then raise their vehicle to reveal a second space underneath.
This is a perfect choice for those in restricted garages as it can be manufactured to your individual requirements (minimum order is required for this which at the moment is 6 units).
Lifting capacity：2300kg/2100mm;
| MODEL NO. | TPP202 |
| Lifting Capacity: | 2300kgs/5000lbs; |
| Lifting Height: | 2100mm/82.70" |
| Platform Length: | 3950mm*2100mm |
| Post Height: | 3000mm/118" |
| Distance between posts: | 2265mm |
| Lock Mode+ Control Mode: | 24V Electric Control |
| Motor: | 2.2KW; |
| Lifting Speed: | 1.5m/min; |
| Falling Speed: | 1.8m/min |
| Warranty: | 24 months; |
| Surface treatment: | Powder coated; |
| Application | Double parking places, Can park:Big SUV on top & Compact SUV on ground; |
| Loading quantity | 8 Sets/20ft; 20sets/40ft; |
• Minimum footprint allows multiple installations in limited space
• Independent lifting structures allows for staggered installation
•Overhead power unit provides smooth quiet hydraulic operation
• Wide-deck platform accommodates pickups, vans and cars
• Designed for installation on typical parking surfaces
• Durable construction for maximum stability
• Dual hydraulic cylinders and heavy-duty lifting chain
• Dual synchronization chains keeps the deck level under all conditions
• Automatic safety lock
• Maintenance-free composite carriage bearings
• Maintenance-free self-lubricating chain rollers
• Wide-base plate mounts directly on grade, even on asphalt
• No special site preparation required for installation
• Optional audible / visual descent alarm available
• Standard integrated key-activated power on / off switch
Product Show & Installation
